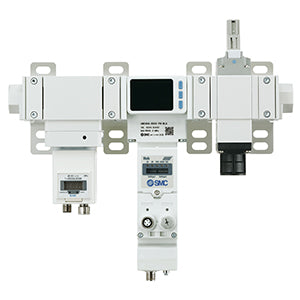

SMC · Air Management System
AMS30A-H00D-EN-KLG
excl. VAT · €3.394,68 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AMS30A-H00D-EN-KLG |
|---|
AIR MANAGEMENT SYSTEM ELECTRO-PNEUMATIC REGULATOR TYPE
Programmable standby and isolation modes Flow rate, pressure and temperature monitoring Compatible with wireless systems Flow rate up to 4000 l/min at 0.7 MPa Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1 Modular connection.
Features
- Programmable standby and isolation modes
- Flow rate, pressure and temperature monitoring
- Compatible with wireless systems
- Flow rate up to 4000 l/min at 0.7 MPa
- Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1
- Modular connection.
Specifications
- Part number: AMS30A-H00D-EN-KLG
- Item number: 02530229
- Body Size: 30
- Thread Type: H (Without Attachments)
- Port Size: 00 (Without Attachments)
- N.O./N.C.: D [N.O. (Normally Open)]
- Protocol: EN [EtherNet/IP™, OPC UA (When Wireless Adapter is Connected: Wireless Base)]
- Units: K (Units Selection Function)
- Manual Override: G (Non-locking Push Type)
- Lead time: 28 days
- Country of origin: JP
Documents
More part numbers in this series
AMS30A-F03C-EC-KLG€2.683,98AMS30A-F03C-EN-KLG€2.788,44AMS30A-F03C-PN-KLG€2.788,44AMS30A-F03C-SA-KLG€2.266,19AMS30A-F03D-EC-KLG€2.754,11AMS30A-F03D-EN-KLG€2.858,58AMS30A-F03D-PN-KLG€2.858,58AMS30A-F03D-SA-KLG€2.336,33AMS30A-H00C-EC-KLG€2.654,29AMS30A-H00C-EN-KLG€2.758,76AMS30A-H00C-PN-KLG€2.758,76AMS30A-H00C-SA-KLG€2.236,50AMS30A-H00D-EC-KLG€2.724,42AMS30A-H00D-EN-KLGThis itemAMS30A-H00D-PN-KLG€2.828,90
