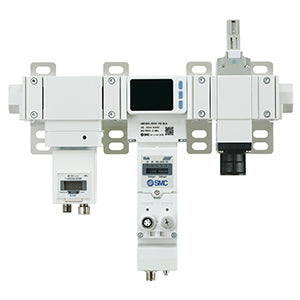

AIR MANAGEMENT SYSTEM ELECTRO-PNEUMATIC REGULATOR TYPE
Programmable standby and isolation modes Flow rate, pressure and temperature monitoring Compatible with wireless systems Flow rate up to 4000 l/min at 0.7 MPa Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1 Modular connection.
Features
- Programmable standby and isolation modes
- Flow rate, pressure and temperature monitoring
- Compatible with wireless systems
- Flow rate up to 4000 l/min at 0.7 MPa
- Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1
- Modular connection.
Specifications
- Part number: AMS30A-H00C-EN-KLG
- Item number: 02530228
- Body Size: 30
- Thread Type: H (Without Attachments)
- Port Size: 00 (Without Attachments)
- N.O./N.C.: C [N.C. (Normally Closed)]
- Protocol: EN [EtherNet/IP™, OPC UA (When Wireless Adapter is Connected: Wireless Base)]
- Units: K (Units Selection Function)
- Manual Override: G (Non-locking Push Type)
- Lead time: 28 days
- Country of origin: JP
