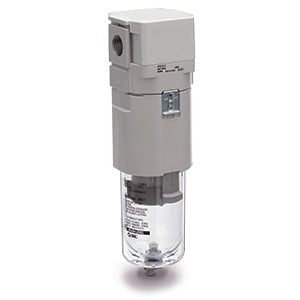

AFF20~60-D, Main Line Filter | AFF30-F02C-D

MAIN LINE FILTER

Features

• Modular style line filter compliant with ISO 8573
• Nominal filtration rating 1 µm
• Connection size 1/8 to 2.

Specifications

• Part number: AFF30-F02C-D
• Item number: 02006830
• Body Size: 30
• Thread Type: F (G)
• Port Size: 02 (1/4)
• Mounting: w/o Mounting Option
• Float type auto drain: C [N.C. (Normally Closed)]
• Bowl: Sizes 20, 30, 40: Polycarbonate Bowl; Sizes 50, 60: Stainless Steel
• Drain Port: With Drain Cock
• Indicator: w/o Indicator
• Flow Direction: Left to Right
• Drain Cock w/Barb Fitting: None
• Pressure Unit: Name Plate and Pressure Gauge: MPa
• Lead time: 34 days
• Country of origin: CN

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Operation manual 2
