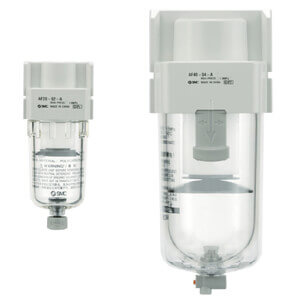

AIR FILTER
Modular style air filter Nominal filtration rating 5 µm Maximum flow rate up to 14000 l/min (ANR, 0.7MPa) Connection size from M5 to 1 Easy replacement and reduced required maintenance space Float type auto drain option.
Features
- New Style modular air filter Prevents contamination Lighter weight than old style modular AF Thickness reduction of resin case provides increased capacity
- (approx. 1.3 times more). Improved water separation efficiency extends the service life of
- filter elements Rc, NPT or G(PF) type threads
Specifications
- Part number: AF10-M5C-A
- Item number: 01244203
- Made to Order 1: None
- Size: 10
- Thread: Rc (or Metric)
- Port Size: M5 (M5 x 0.8)
- Accessory: C [Float Type Auto Drain (N.C.)]
- Bowl: Polycarbonate Bowl
- Drain port/Exhaust mechanism/Flow direction: None
- Pressure Unit: Name Plate and Pressure Gauge
- Made to Order 2: None
- Lead time: 5 days
- Country of origin: CN
