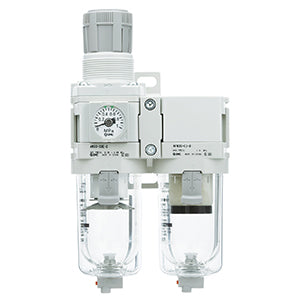

AC20D-D to AC60D-D Filter Regulator + Mist Separator | AC30D-F02E-D

FILTER REGULATOR + MIST SEPARATOR

Modular FRL units ISO 8573-1:2010 compliant Uniform Body Style.

Features

• ISO 8573-1:2010 compliant
• Port Size: 1/8, 1/4, 3/8, 1/2, 3/4, 1
• Body size: 20, 30, 40, 50, 60.

Specifications

• Part number: AC30D-F02E-D
• Item number: 02496972
• Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
• Body Size: 30
• Drain Cock w/Barb Fitting: Without Barb Fitting
• Port: 02 (1/4)
• Exhaust Mechanism: Relieving
• Pressure gauge /Digital pressure switch: E [Square embedded type pressure gauge (with limit indicator)]
• Bowl type: Standard (Polycarbonate Bowl)
• Flow Direction: Standard (Flow Direction: Left->Right)
• Thread: F (G)
• Float type auto drain: Without Auto drain
• Set pressure: Standard (0.05 to 0.85 MPa)
• Residual Pressure Relief 3 Port Valve: Without Attachment
• Filter Regulator Drain Port: Standard
• Lead time: 33 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
