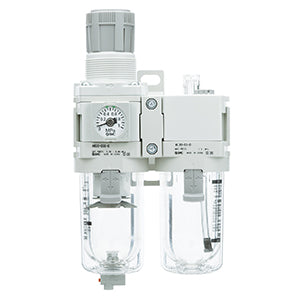

AC20A-D to AC60A-D Filter Regulator + Lubricator | AC20A-F01G-D

FILTER REGULATOR + LUBRICATOR

Modular FRL units ISO 8573-1:2010 compliant Uniform Body Style.

Features

• ISO 8573-1:2010 compliant
• Port Size: 1/8, 1/4, 3/8, 1/2, 3/4, 1
• Body size: 20, 30, 40, 50, 60.

Specifications

• Part number: AC20A-F01G-D
• Item number: 02228965
• Body Size: 20
• Thread: F (G)
• Port: 01 (1/8)
• Float type auto drain: Without Auto drain
• Pressure gauge /Digital pressure switch: G (Round Pressure Gauge w/Limit Indicator)
• Residual Pressure Relief 3 Port Valve: Without
• Set pressure: Standard (0.05 to 0.85 MPa)
• Bowl type +Drain Cock for Lubricator: Standard (Polycarbonate Bowl + Lubricator without Drain Cock)
• Filter Regulator Drain Port: Standard
• Exhaust Mechanism: Relieving
• Flow Direction: Standard (Flow Direction: Left->Right)
• Drain Cock w/Barb Fitting: Without Barb Fitting
• Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
• Lead time: 6 days
• Country of origin: CZ

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
