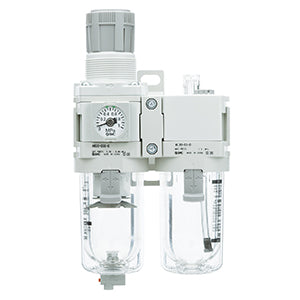

SMC · Air Combination Unit
AC30A-F03DE-D
excl. VAT · €147,02 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Next-business-day delivery in Bulgaria for in-stock parts
In stock
Need volume pricing or a special version? Request a quote →
| Part number | AC30A-F03DE-D |
|---|
FILTER REGULATOR + LUBRICATOR
Modular FRL units ISO 8573-1:2010 compliant Uniform Body Style.
Features
- ISO 8573-1:2010 compliant
- Port Size: 1/8, 1/4, 3/8, 1/2, 3/4, 1
- Body size: 20, 30, 40, 50, 60.
Specifications
- Part number: AC30A-F03DE-D
- Item number: 02184196
- Body Size: 30
- Thread: F (G)
- Port: 03 (3/8)
- Float type auto drain: D [Float Type Auto Drain (N.O.)]
- Pressure gauge /Digital pressure switch: E [Square embedded type pressure gauge (with limit indicator)]
- Residual Pressure Relief 3 Port Valve: Without
- Set pressure: Standard (0.05 to 0.85 MPa)
- Bowl type +Drain Cock for Lubricator: Standard (Polycarbonate Bowl + Lubricator without Drain Cock)
- Filter Regulator Drain Port: Standard
- Exhaust Mechanism: Relieving
- Flow Direction: Standard (Flow Direction: Left->Right)
- Drain Cock w/Barb Fitting: Without Barb Fitting
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Lead time: 6 days
- Country of origin: CZ
