SMC · Vacuum Switches

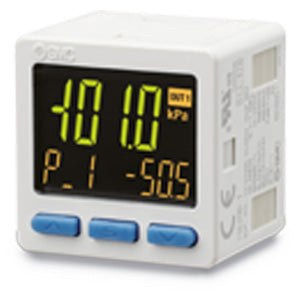

ZSE20BF-T-M5-W
excl. VAT · €218,16 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | ZSE20BF-T-M5-W |
|---|---|
| Rated pressure range | BF (-100 to 100 kPa) |
| Output Specification | T (PNP Open Collector 2 Outputs + Analogue Voltage Output) |
| Unit Specification | w/Unit Selection Function |
| Piping Specification | M5 (Female Thread) |
| Lead Wire | W (Lead Wire w/Connector, 5-core, 2 m Lead Wire, Waterproof) |
| Bracket | None |
| Operation Manual | Operation Manual, w/o Calibration Certificate |
| Lead time (days) | 21 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8536501990 |
- High-Precision Digital Vacuum Switches
- 3-Screen, 3-Colour Display
- Applicable fluid: air, non-corrosive gas, non-flammable gas, or general fluids
- Pressure ranges: from -101 to 100 kPa
- Repeatability: ±0.2 % F.S.
- Output: IO-Link, NPN/PNP or Analogue (Voltage/Current)
- Select response time: from less than 1.5 ms to 5 s.
- M12 connector available
- IP40 or IP65
- Consumption: 35 mA or less.
Key features
- 3-Screen Display High-Precision Digital Pressure Switch.
- 2 outputs + Analogue output (Voltage/Current) + IO-Link.
- IP65.
- Applicable fluid: Air, Non-corrosive gas, Non-flammable gas.
- Pressure range: -101 to 100 kPa.
- Repeatability: ±0.2 % F.S.
- Response time: 1.5 ms or less.
- Consumption: 35mA or less.
