SMC · Vacuum Pads
ZP3M-T40RFS-S32-MF
excl. VAT · €102,56 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | ZP3M-T40RFS-S32-MF |
|---|---|
| Deep vacuum pad with ribs | |
| Ø40 | |
| material | FS61 |
| slip-proof | |
| mesh filter | |
| adapter with vertical connection | |
| square adapter | |
| Country of origin | JP |
| TARIC code | 8479907099 |

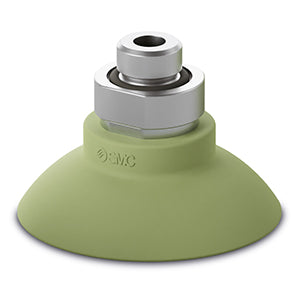

Bowl Shape with Non-Slip Feature – ZP3M
Key features
- Pad sizes: Ø 32, Ø 40, Ø 50, Ø 63, Ø 80, Ø 100
- Non-slip special ribs
- Material: FS61 (Fluoro-based rubber)
- Pad hardness (Shore A: ±5°): 60º
- Surface operating temperature range: 0 to 200 ºC
- Adapter operating temperature range: 0 to 150 ºC
- Mesh filter opening: 250 μm
- Options: male and female thread and square vertical vacuum inlet.
