SMC · Vacuum Pads
ZP3M-T32RFSJB10-MF
excl. VAT · €144,23 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | ZP3M-T32RFSJB10-MF |
|---|---|

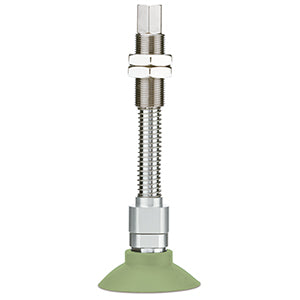

| Deep vacuum pad with ribs | |
| Ø32 | |
| material | FS61 |
| slip-proof | |
| mesh filter | |
| buffer | |
| swivel with sleeve | |
| stroke | 10 |
| vertical connection Rc1/8 | |
| Country of origin | JP |
| TARIC code | 8479907099 |
Bowl Shape with Non-Slip Feature with buffer – ZP3M-#JB#
Key features
- Pad sizes: Ø 32, Ø 40, Ø 50, Ø 63, Ø 80, Ø 100
- Non-slip special ribs
- Material: FS61 (Fluoro-based rubber)
- Pad hardness (Shore A: ±5°): 60º
- Surface operating temperature range: 0 to 200 ºC
- Adapter & buffer operating temperature range: 0 to 150 ºC
- Mesh filter opening: 250 μm
- Options: male and female thread and square vertical vacuum inlet
- Buffer stroke: 10, 30, 50 mm.
