SMC · Vacuum Pads

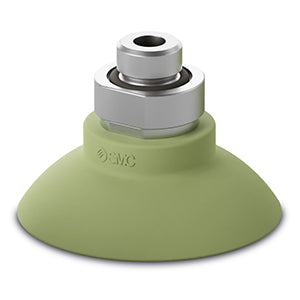

ZP3M-T32RFS-BG02-MF
excl. VAT · €90,38 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZP3M-T32RFS-BG02-MF |
|---|---|
| Vacuum Inlet Direction | T (Vertical) |
| Pad Diameter | ø32 |
| Material | FS (FS61, Fluoro-based Rubber, Green) |
| Connection Thread and Type | BG02 (Direct Mounting, Female Thread, G1/4) |
| Mesh Filter | MF (w/Mesh Filter) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479907099 |
- For the adsorption of oily flat and curved workpieces
Key features
- Pad sizes: Ø 32, Ø 40, Ø 50, Ø 63, Ø 80, Ø 100
- Non-slip special ribs
- Material: FS61 (Fluoro-based rubber)
- Pad hardness (Shore A: ±5°): 60º
- Surface operating temperature range: 0 to 200 ºC
- Adapter operating temperature range: 0 to 150 ºC
- Mesh filter opening: 250 μm
- Options: male and female thread and square vertical vacuum inlet.
