SMC · Vacuum Pads

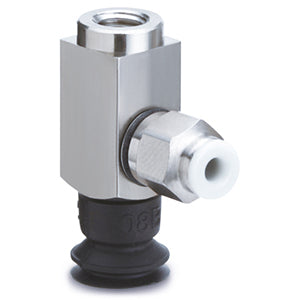

ZP3-Y10UMN-B5-04
excl. VAT · €12,31 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZP3-Y10UMN-B5-04 |
|---|---|
| Pad Diameter | 10mm |
| Pad Type | UM (Flat with groove) |
| Material | N (NBR) |
| Mounting | B5 (M5 x 0.8 Female Thread) |
| Vacuum Inlet | 04 (Ø4 One-touch Fitting) |
| Lead time (days) | 7 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479907099 |
- For the adsorption of general workpieces
Key features
- Pad Sizes: Ø 1.5 to Ø 16 mm
- Shapes: Flat Type, Flat Type with Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM, Conductive NBR, Conductive Silicone Rubber
- Options: Female Thread, One-touch and Barb Fitting, Lateral Vacuum Inlet.
