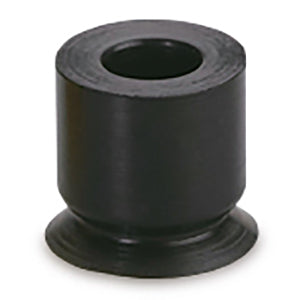

SMC · Vacuum Pads
ZP3-04UMS
excl. VAT · €3,92 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZP3-04UMS |
|---|---|
| Pad Diameter | 4mm |
| Material | S (Silicone Rubber) |
| Pad Type | UM (Flat with groove) |
| Lead time (days) | 7 |
| Minimum order quantity | 10 |
| Country of origin | JP |
| TARIC code | 8479907099 |
- ZP series vacuum cups are available in 19 diameters from 2 to 200mm, 6-cup materials, and 4 cup designs, offers a wide selection to choose from. The 4-cup designs flat, flat with ribs, deep and bellows are standard, but if these don't meet your application requirements, contact us about your special application. Our engineers have custom made many designs and shapes using a variety of materials.
Key features
- Pad Sizes: Ø 1.5 - Ø 16 mm
- Shapes: Flat Type
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM, Conductive NBR, Conductive Silicone Rubber
- Improved pad adapters
- Wide selection of piping.
