SMC · Vacuum Pads

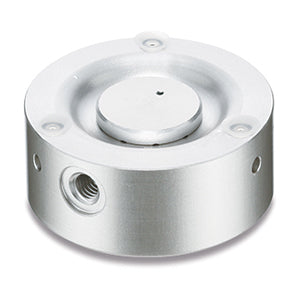

ZNC40-PS
excl. VAT · €257,52 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZNC40-PS |
|---|---|
| Body Size | 40 (ø40mm) |
| Body Material | Aluminum |
| Mounting Plate | None |
| Attachment | PS [with Stopper; Silicone Rubber (White)] |
| Pressure sensor | None |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- SMC's Bernoulli type grippers, series ZNC moves work pieces without leaving flaws or adsorption marks. The ZNC can be used for the transfer of thin cloths, films, printed circuit boards, bubble wrap, etc.
Key features
- Bernoulli round type, Ø 20, Ø 30, Ø 40, Ø 60, Ø 80
- Lifting Force: Up to 65 N
- Body material: Aluminium, resin and stainless steel
- Grease-free
- Stopper and vibration suppression cover available in multiple materials
- Multiple ports, can be used as sensor or release port.
