SMC · Vacuum Ejectors

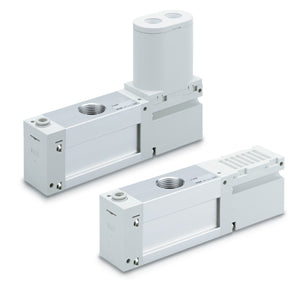

ZL6HF04-K15LOZ-VBW
excl. VAT · €1.015,93 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZL6HF04-K15LOZ-VBW |
|---|---|
| Max. Suction Flow Rate | 6 [600 L/min (ANR)] |
| Supply Pressure | H (0.50 MPa) |
| Vacuum (2/V) Port Size/Supply (1/P) Port Tubing O.D | F04 [Vacuum |
| Supply | 8 (Metric)] |
| Exhaust Method | Silencer Exhaust |
| Supply Valve/Release Valve Combination | K1 [Supply Valve (N.C.), Release Valve (N.C.)] |
| Rated voltage | 5 (24 VDC) |
| Electrical Entry | LO (L Plug Vertical Connector w/o Connector) |
| Light/Surge Voltage Supprressor | Z (w/light surge voltage suppressor) |
| Manual Override | Non-locking Push Type |
| Vacuum Pressure Sensor | V (Pressure Switch for Vacuum w/Energy Saving Function, Compound Pressure 1 Output) |
| Output | B (PNP Open Collector) |
| Unit | w/Unit Switching Function |
| Lead Wire | W (Lead Wire for Switch w/Energy Saving Function |
| Length | 2 m |
| Included) | |
| Option | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- Energy-saving, large flow rate, 3-stage diffuser construction ejector
- Energy saving function selectable, with reduction of up to 90%
- Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
- Supply valve/release valve combinations
- Exhaust specifications: built-in silencer (standard), port exhaust
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
- All-in-one design with integrated components to make it compact and lightweight.
Key features
- Nozzle diameter: Ø1.5 or Ø1.9 mm.
- Double port branch specification selectable.
- Maximum suction flow rate: 300 l/min(ZL3); 600 l/min(ZL6) (ANR).
- Air consumption: 135 or 150 l/min(ZL3); 270 or 300 l/min(ZL6) (ANR).
- Basic model weight: 390 g(ZL3); 470 g(ZL6).
- Exhaust specifications: built-in silencer (standard), port exhaust.
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter.
- Standard supply pressure: 0.35 or 0.5 MPa.
