SMC · Vacuum Ejectors

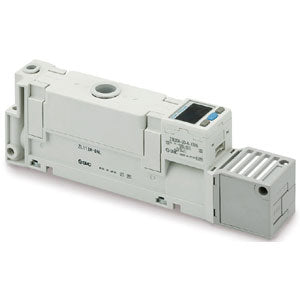

ZL112A-K15LOU-DYL
excl. VAT · €662,74 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZL112A-K15LOU-DYL |
|---|---|
| Output Specifications | Y (PNP open collector 2 outputs + Copy function) |
| Electrical Entry | LO (L Plug Vertical Connector w/o Connector) |
| Unit Specifications | w/Unit Switching Function, Not for Use in Japan) |
| Supply(P),Vacuum(V), One-touch Fitting | Supply (P) Port: ø6; Vacuum (V) Port: ø12 |
| Vacuum Pressure Sensor | D (Digital Vacuum Pressure Switch) |
| Rated voltage | 5 (24 VDC) |
| Supply/Release Valve Combination | K1 [Supply Valve (N.C.), Release Valve (N.C.)] |
| Light/surge voltage suppressor | U (w/Light/Surge Voltage Suppressor, Non-polar) |
| Lead Wire Specifications | L (Lead Wire w/Connector, 2m) |
| Option | None |
| Exhaust Type | Silencer Exhaust |
| Manual Override | Non-locking Push Type |
| Lead time (days) | 16 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- Energy-saving, large flow rate, 3-stage diffuser construction ejector
- Energy saving function selectable, with reduction of up to 90%
- Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
- Supply valve/release valve combinations
- Exhaust specifications: built-in silencer (standard), port exhaust
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
- All-in-one design with integrated components to make it compact and lightweight.
Key features
- Energy saving multistage vacuum ejector.
- Nozzle diameter: Ø1.2 mm.
- Maximum suction flow rate: 100 l/min (ANR).
- Air consumption: 57 l/min (ANR).
- Basic model weight: 180 g.
- Exhaust specifications: built-in silencer (standard), port exhaust.
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter.
