SMC · Vacuum Ejectors

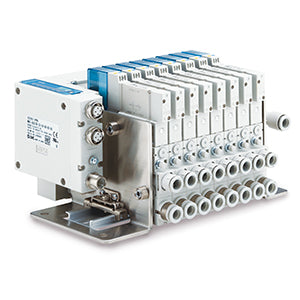

ZKJ10C6H-A5U-T1
excl. VAT · €362,15 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZKJ10C6H-A5U-T1 |
|---|---|
| Nominal Nozzle Size | 10 (ø1.0) |
| Vacuum Port (V), Supply Port (P) | C6 (Metric; Vacuum Port: ø6; Supply Port: Plug) |
| Exhaust | H (High-noise Reduction Silencer Exhaust) |
| Exhaust Sealing Valve | None |
| Combination of Supply and Release Valve | A (Supply Valve: N.C.; Release Valve: N.C.) |
| Rated voltage | 5 (24VDC) |
| Light/surge voltage suppressor | U (Light: Yes; Surge Voltage Suppressor: Yes; Common Spec: Non-polar) |
| Pressure sensor | T1 (-100 to 100 KPa) |
| Option | Without Option |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- The ZKJ series is a single energy-saving generator unit with reduced air consumption with a valve and pressure sensor.
Key features
- Suction flow rate of up to 74 l/min with a vacuum pressure of -89 kPa
- Nozzle sizes: Ø 0.7, Ø 1.0, Ø 1.2, Ø 1.5
- Prevents work pieces from dropping suddenly when the power goes out or is turned off
- Exhaust sealing function for the quick release of workpieces
- Exhaust specifications: port exhaust, high-noise reduction silencer
- IP65 enclosure.
