SMC · Vacuum Ejectors

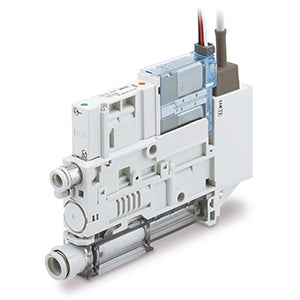

ZK2B07K5RWA-06
excl. VAT · €419,52 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | ZK2B07K5RWA-06 |
|---|---|
| Bracket | None |
| Body type | B (Single Unit - Port Exhaust) |
| Nominal Nozzle Size | 07 (ø0.7) |
| Supply Valve / Release Valve | K (N.C. / N.C.) |
| Individual Release Pressure Supply | None |
| Screwdriver Operation Type Long Lock Nut | None |
| Supply Valve/Release Valve/Digital Pressure Switch for Vacuum Connector Spec. | W (With Lead Wire for Switch with Energy Saving Function) |
| Pressure Sensor/Digital Pressure Switch for Vacuum Spec. | R (Digital Pressure Switch for Vacuum with Energy Saving Function / 100 to -100 kPa / PNP 1 Output / Unit Selection Function) |
| Vacuum Break Flow Adjustment | None |
| Vacuum (V) Port | 06 [ø6 One-touch Fitting (Metric)] |
| Rated Voltage | 5 (24 VDC) |
| Exhaust Interference Prevention Valve | None |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- Advanced vacuum unit (ejector/pump/manifold systems) with low noise and high efficiency options.
- Energy saving digital vacuum switch: Intermittent energising (supply/exhaust) only when vacuum decreases.
- More efficient 2-stage ejector: Air consumption 30% reduced.
- Dual 2 port valve (release valve/supply valve): Can hold vacuum even when the power goes out or is turned off. Prevents the sudden dropping of workpieces.
- All-in-one design with integrated components to make it compact and lightweight.
- Control and monitor up to 32 outputs via a wide variety of serial interface communication protocols
- EX260 Compatible protocols: IO-Link, DeviceNet, PROFIBUS DP, CC-Link, EtherNet/IP™, EtherCAT, PROFINET, Ethernet POWERLINK
- EX500 Compatible protocols: Getaway decentralised system
- EX600 Compatible protocols: DeviceNet, PROFIBUS DP, CC-Link, EtherNet/IP™, EtherCAT, PROFINET, wireless, compatible wireless base.
- Retrofitting of vacuum sensor and manifold rail mounting bracket allowed.
Key features
- Dual 2 port valve (Release valve/Supply valve).
- Efficient 2-stage ejector.
- Pressure sensor / switch variations with energy-saving function available.
