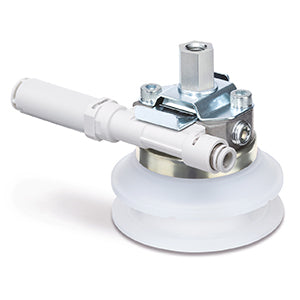

SMC · Vacuum Pads
ZHP80UMFB-00
excl. VAT · €187,61 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZHP80UMFB-00 |
|---|---|
| Mounting | B (Metric, Male Thread, M10) |
| Exhaust | None |
| Pad Form | UM (Flat Type with Groove) |
| Pad Material | F (FKM, Black) |
| Pad Diameter | 80 (ø80) |
| Ejector/Nozzle Size | 00 (w/o Ejector) |
| Supply Port | None |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- Integration of ejector and pad in a single compact unit.
- Lock-plate structure that enables easy, one-touch replacement of the pad.
- More efficient two-stage ejector mounted, with improved vacuum generation efficiency: suction flow rate increased by 50 %, and air consumption reduced by 30 %.
- Through-hole silencer placed in the release, thus discharging directly to atmosphere - noise reduced and clogging minimised.
- 3 port locations available in the adapted pad, allowing for variety of connections and for daisy-chain piping.
Key features
- Pad Sizes: Ø 63 - Ø 80 mm
- Shapes: Bellows Type with Groove, Flat Type with Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM
