SMC · Vacuum Pads
ZHP63UMUA-00
excl. VAT · €146,14 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | ZHP63UMUA-00 |
|---|---|
| Mounting | A (Metric, Male Thread, M8) |
| Exhaust | None |
| Pad Form | UM (Flat Type with Groove) |
| Pad Material | U (Urethane Rubber, Brown) |
| Pad Diameter | 63 (ø63) |
| Ejector/Nozzle Size | 00 (w/o Ejector) |
| Supply Port | None |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |

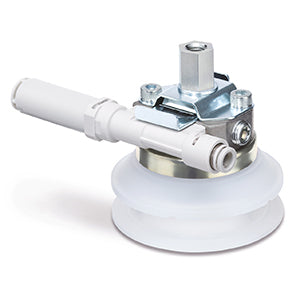

- Integration of ejector and pad in a single compact unit.
- Lock-plate structure that enables easy, one-touch replacement of the pad.
- More efficient two-stage ejector mounted, with improved vacuum generation efficiency: suction flow rate increased by 50 %, and air consumption reduced by 30 %.
- Through-hole silencer placed in the release, thus discharging directly to atmosphere - noise reduced and clogging minimised.
- 3 port locations available in the adapted pad, allowing for variety of connections and for daisy-chain piping.
Key features
- Pad Sizes: Ø 63 - Ø 80 mm
- Shapes: Bellows Type with Groove, Flat Type with Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM
Documents
More part numbers in this series
ZHP63BMFA-00€163,05ZHP63BMFA-10C6S€207,92ZHP63BMFA-15C6S€207,92ZHP63BMNA-00€124,66ZHP63BMNA-10C6S€169,53ZHP63BMNA-15C6S€169,53ZHP63BMNB-00€124,66ZHP63BMNB-10C6S€169,53ZHP63BMNB-15C6S€169,53ZHP63BMSA-00€130,43ZHP63BMSA-10C6S€175,31ZHP63BMSA-15C6S€175,31ZHP63BMUA-00€136,20ZHP63BMUA-10C6S€181,07ZHP63BMUA-15C6S€181,07
