SMC · Vacuum Pads

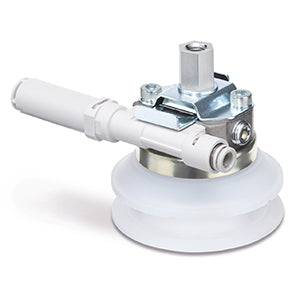

ZHP63UMSA-10C6S
excl. VAT · €195,38 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | ZHP63UMSA-10C6S |
|---|---|
| Mounting | A (Metric, Male Thread, M8) |
| Exhaust | S (Silencer Exhaust) |
| Pad Form | UM (Flat Type with Groove) |
| Pad Material | S (Silicone Rubber, White) |
| Pad Diameter | 63 (ø63) |
| Ejector/Nozzle Size | 10 (ø1.0) |
| Supply Port | C6 (Metric, ø6 One-touch Fitting) |
| Lead time (days) | 21 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- Integration of ejector and pad in a single compact unit.
- Lock-plate structure that enables easy, one-touch replacement of the pad.
- More efficient two-stage ejector mounted, with improved vacuum generation efficiency: suction flow rate increased by 50 %, and air consumption reduced by 30 %.
- Through-hole silencer placed in the release, thus discharging directly to atmosphere - noise reduced and clogging minimised.
- 3 port locations available in the adapted pad, allowing for variety of connections and for daisy-chain piping.
Key features
- Pad Sizes: Ø 63 - Ø 80 mm
- Shapes: Bellows Type with Groove, Flat Type with Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM
