SMC · Other Vacuum Equipment
ZCDUKQ32-50D
excl. VAT · €242,93 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZCDUKQ32-50D |
|---|---|
| Bore Size | 32 mm |
| Stroke | 50 mm |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Magnet | D (Built-in Magnet) |
| Port Thread | M5x0.8 (Bore 10, 16, 20, 25), Rc1/8 (Bore 32) |
| Auto Switch | No Switch |
| VAC Side Tube/Rod End Shape | Q (Rod Piping/Male Thread) |
| Lead time (days) | 19 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412310090 |

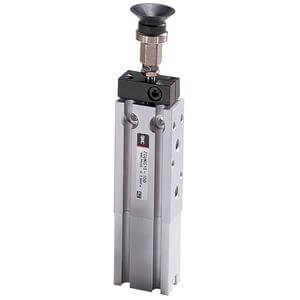

- The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.
