SMC · Other Vacuum Equipment
ZCDUKC32-25D
excl. VAT · €254,15 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZCDUKC32-25D |
|---|---|
| Compact cylinder with hollow rod for vacuum | |
| Ø32 | |
| stroke | 25 mm |
| direct mounting | |
| double acting | |
| ports Rc1/8 | |
| vacuum connection at the rear end of the cylinder | |
| rod end male thread | |
| non-rotating | |
| Country of origin | JP |
| TARIC code | 8412310090 |

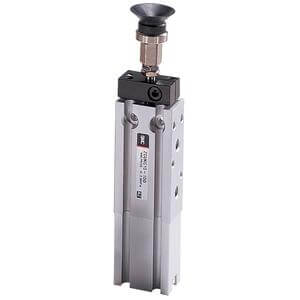

ZC(D)UK, Free Mount Cylinder w/Vacuum Pad
Key features
- The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.
