SMC · Angle and In-line Valves

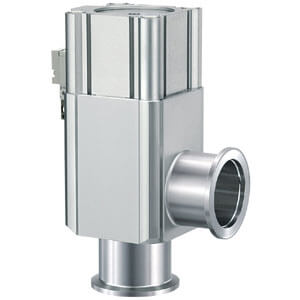

XLAV-25F-2-5G-XF1A-Q
excl. VAT · €538,10 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | XLAV-25F-2-5G-XF1A-Q |
|---|---|
| Body Surface Treatment | External: Hard Anodized - Internal: Raw Material |
| Flange Size | 25 |
| Auto Switch | w/o Auto Switch and w/o Built-in Magnet) |
| Valve Direction | F (w/Indicator, Left Flange Surface) |
| Rated Voltage | 5 (24 VDC) |
| Electrical Entry | G [Grommet (Lead Wire Length 300mm)] |
| Flange Type | KF (NW) |
| Number | None |
| Seal Replacement (Refer to PDF on page 4) | A (2-3-4) |
| Surge Suppressor | None |
| CE Marked | Q (CE Marked) |
| Seal Material | F1 (FKM, Same Specs as Standard FKM) |
| Lead Wire | 05 M (Or None in the Case of No Auto Switch) |
| Lead time (days) | 43 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481807990 |
- High vacuum angle valve series XL provides excellent thermal conductivity results in a uniform temperature for the entire valve body and a marked decrease in the condensation of gases inside the valve. The valve does not contain heavy metals such as Ni (nickel) or Cr (chrome) and a low sputtering yield also helps to minimize heavy metal contamination of semiconductor wafers.
Key features
- Single acting, Bellows seal.
- With Solenoid Valve.
- Aluminium bodied.
- Uniform baking temperature.
- Minimal outgassing.
- High corrosion resistance to fluorine gas.
- Lightweight, Compact.
- Minimal contamination from heavy metals.
