SMC · Angle and In-line Valves
XLA-40G-2M9//
excl. VAT · €673,73 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | XLA-40G-2M9// |
|---|---|
| Indicator/Pilot port direction | G (w/Indicator, Rear Flange Surface) |
| Body Surface Treatment | External |
| Lead Wire Length | 05 M (Or None in the Case of No Auto Switch) |
| Flange Type | None [KF(NW)] |
| Seal Replacement (Refer to PDF on page 4) | None |
| Number of Autoswitches/Mounting position | None |
| Flange Size | 40 |
| Seal Material | FKM (1349-80) |
| Auto Switch | M9// (w/o Auto Switch w/Built-in Magnet) |
| Temperature/Heater | 5 to 60°C |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481807990 |

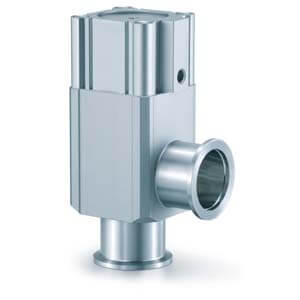

- High vacuum angle valve series XL provides excellent thermal conductivity results in a uniform temperature for the entire valve body and a marked decrease in the condensation of gases inside the valve. The valve does not contain heavy metals such as Ni (nickel) or Cr (chrome) and a low sputtering yield also helps to minimize heavy metal contamination of semiconductor wafers.
Key features
- Single acting, Bellows seal.
- Aluminium bodied.
- Uniform baking temperature.
- Minimal outgassing.
- High corrosion resistance to fluorine gas.
- Lightweight, Compact.
- Minimal contamination from heavy metals.
