SMC · Process Valves
VXD2B2HZ3AA
excl. VAT · €100,24 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VXD2B2HZ3AA |
|---|---|
| 2/2 solenoid valve | |
| pilot operated | |
| N.O. | |
| water | |
| 24 V DC | |
| DIN connector | |
| noise reduction | |
| thread NPT1/2 | |
| orifice | 15 mm |
| body | brass |
| seal NBR | |
| Country of origin | JP |
| TARIC code | 8481209090 |

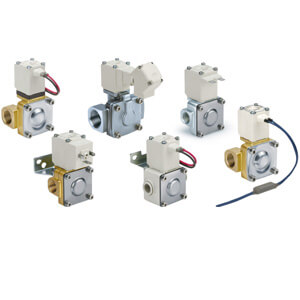

VXD, Single Unit, Pilot Operated, 2 Port Solenoid Valve
Key features
- Our updated pilot operated 2 port solenoid valve, VXD Series, is 7% smaller than former conventional models, whilst still delivering big benefits to customers. The renewed VXD Series supports our commitment to developing new innovations to drive energy savings for customers; it’s not only more compact, but uses less power. Ideal for air, water, oil, heated water and high temperature oil applications, ranging from car wash centres to oil lines in process industries, the VXD Series is available in a wide range of body materials – aluminium, resin, brass and stainless steel – and offers low concentration ozone resistant and oil free options. Labour savings can also be enjoyed, as the air version with resin body offers a built-in one-touch fitting option. Other features include a rubber buffer that reduces the valve’s operating noise levels and thanks to a special construction, its life-span has been extended. It also has an improved OFF response when operated with high viscosity fluids such as oil.
