SMC · Process Valves

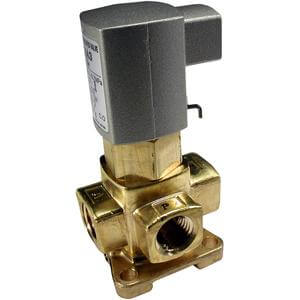

VXA3244-03F-B
excl. VAT · €117,18 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VXA3244-03F-B |
|---|---|
| Size | No.2 |
| Orifice | 4 (4mm) |
| Option | Brass Body, NBR Seal |
| Port Size | 03 [3/8 (10A)] |
| Thread | F (G) |
| Bracket | B (Bracket) |
| Lead time (days) | 26 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Direct air operated, 2 and 3 port valve series VXA can be used with a wide variety of fluids. The manifold for the VXA21/22 series is available in a common SUP style or individual SUP style (for vacuum use). The VXA31/32 series manifold is individual ported. Valves for both are easily replaced without changing existing piping.
Key features
- Direct air operated, 3 port valve
- Proper selection of body and sealing material permits
- application of a wide variety of fluids
- C.O. style is easy to use; operable as either N.C. or N.O.
- Easy to disassemble and reassemble in a short time
- Compatible with high viscosity fluids (500cSt)
