SMC · Process Valves

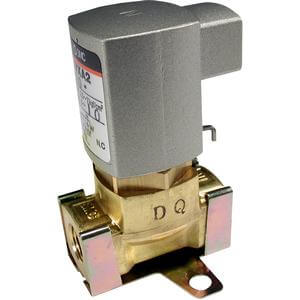

VXA2130-02F-1
excl. VAT · €52,73 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | VXA2130-02F-1 |
|---|---|
| Size | No.1 |
| Orifice | 3 (4.5 Mm) |
| Style | 0 (Normally Closed) |
| Option | Brass Body, NBR Seal |
| Port Size | 02 [1/4 (8A)] |
| Thread | F (G) |
| Bracket | None |
| Lead time (days) | 24 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Direct air operated, 2 and 3 port valve series VXA can be used with a wide variety of fluids. The manifold for the VXA21/22 series is available in a common SUP style or individual SUP style (for vacuum use). The VXA31/32 series manifold is individual ported. Valves for both are easily replaced without changing existing piping.
Key features
- Direct air operated 2 port valve
- Proper selection of body and sealing materials
- permits application of a wide variety of fluids
- Valve body available in N.C. or N.O.
- Port size : Rc(PT)1/8
- Pilot pressure: 0.25 to 0.7MPa
- Compatible with high viscosity fluids (500cSt)
