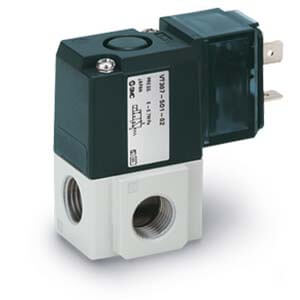

VT307, 3 Port Direct Operated Poppet, All Types | VT307YK-5D1-02F-Q

Large Flow Capacity, yet Compact Size.Low Power Consumption.Suitable for Use in Vacuum Applications.1 Valve, 6 Functions. (Universal Porting)Selective porting can provide 6 valve functions,such as N.C. valve, N.O. valve, Divider valve, Selector valve etc.Manifolded valve can be easily convertedfrom N.C. normally closed to N.O. normally open merely by turning over the switch cover.

Features

• Wide variety of valve options .
• Low Power Consumption.
• Universal porting type.
• Same mounting dimensions as the current product in both types (body ported and for manifold type).
• Low concentration ozone resistant: HNBR rubber seal.
• RoHS and CE compliant.

Specifications

• Part number: VT307YK-5D1-02F-Q
• Pressure specifications: K (High-pressure type [1 MPa])
• Electrical Entry: D (DIN connector [with connector])
• Port Size: 02 (1/4 [8A])
• CE Marked: Q (CE Marked)
• Indicator light and surge voltage suppressor: None
• Option: None
• Body: T (Body Ported)
• Valve specification: Y (Energy saving [2WDC])
• Rated Voltage: 5 (24V DC)
• Thread: F (G [PF])
