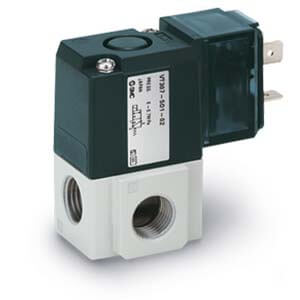

VT307, 3 Port Direct Operated Poppet, All Types | VT307EK-5DO1-02F-Q

3 PORT SOLENOID VALVE

Large Flow Capacity, yet Compact Size.Low Power Consumption.Suitable for Use in Vacuum Applications.1 Valve, 6 Functions. (Universal Porting)Selective porting can provide 6 valve functions,such as N.C. valve, N.O. valve, Divider valve, Selector valve etc.Manifolded valve can be easily convertedfrom N.C. normally closed to N.O. normally open merely by turning over the switch cover.

Features

• Wide variety of valve options .
• Low Power Consumption.
• Universal porting type.
• Same mounting dimensions as the current product in both types (body ported and for manifold type).
• Low concentration ozone resistant: HNBR rubber seal.
• RoHS and CE compliant.

Specifications

• Part number: VT307EK-5DO1-02F-Q
• Item number: 01162507
• Body: T (Body Ported)
• Valve specification: E (Continuous Duty)
• Pressure specifications: K (High-pressure type [1 MPa])
• Rated Voltage: 5 (24V DC)
• Electrical Entry: DO (DIN connector [without connector])
• Indicator light and surge voltage suppressor: None
• Port Size: 02 (1/4 [8A])
• Thread: F (G [PF])
• Option: None
• CE Marked: Q (CE Marked)
• Lead time: 18 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Installation manual
• CE certificate
• CE certificate 2
• CE certificate 3
