SMC · Pilot Operated 4/5 Port Solenoid Valves

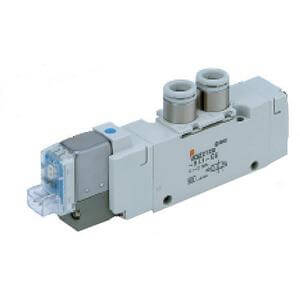

VQZ2520K-5LO1-M5-Q
excl. VAT · €120,65 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQZ2520K-5LO1-M5-Q |
|---|
5 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm 2 (Cv):
- metal seal 2.0 (0.11) - 12.6 (0.7);
- rubber seal 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:
- metal seal 25 or less; rubber seal 30 or less
- Ambient & fluid temperature: -10 to 50°C
Specifications
- Part number: VQZ2520K-5LO1-M5-Q
- Item number: 02991160
- Series: 2 (VQZ2000)
- Function: K (High Pressure 0.9W - DC Only)
- Electrical Entry: LO (L Plug w/o Connector, w/Light & Surge Suppressor)
- Type of actuation: 5 (3 Position Pressure Centre)
- Foot Bracket: None
- Seal Type: 0 (Metal Seal)
- IP65 Compliant: No
- Port Size: M5 Thread
- Coil Voltage: 5 (24VDC)
- CE Compliant: Q (CE Marked)
- Manual Override: Non-locking Push Style
- Thread: Rc
- Lead time: 29 days
- Country of origin: JP
