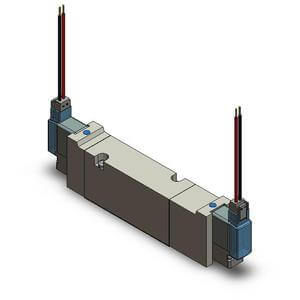

VQZ**5*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Base Mounted | VQZ2451B-5MO1-Q

5 PORT SOLENOID VALVE

Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.

Features

• Fluid: air/inert gas
• Operating pressure range: 0.1 - 0.7MPa
• (high pressure type 1.0MPa)
• Effective area mm 2 (Cv):
• metal seal 2.2 (0.12) - 16.2 (0.9); rubber seal 3.6 (0.2) - 21.6 (1.2)
• Coil rated voltage: 12, 24VDC;
• 100, 110, 200, 220VAC
• Response time (ms) standard 1W, high pressure 1.5W:
• metal seal 25 or less; rubber seal 30 or less
• Ambient & fluid temperature: -10 to 50° C

Specifications

• Part number: VQZ2451B-5MO1-Q
• Item number: 02991141
• Series: 2 (VQZ2000)
• Function: B (High Speed Response 0.9W - DC Only)
• Q: Q (CE Marked)
• Composite Symbol: 4 (3 Position Exhaust Centre)
• Seal Type: 1 (Rubber Seal)
• IP65 Compliant: No
• Port Size: w/o Sub-plate
• Coil Voltage: 5 (24VDC)
• Lead Wire: MO (M Plug w/o Connector)
• Manual Override: Non-locking Push Style
• Lead time: 29 days
• Country of origin: JP
