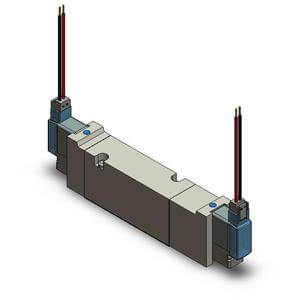

SMC · Pilot Operated 4/5 Port Solenoid Valves
VQZ1250-5LO1-Q
excl. VAT · €111,35 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQZ1250-5LO1-Q |
|---|
5 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air/inert gas
- Operating pressure range: 0.1 - 0.7MPa
- (high pressure type 1.0MPa)
- Effective area mm 2 (Cv):
- metal seal 2.2 (0.12) - 16.2 (0.9); rubber seal 3.6 (0.2) - 21.6 (1.2)
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:
- metal seal 25 or less; rubber seal 30 or less
- Ambient & fluid temperature: -10 to 50° C
Specifications
- Part number: VQZ1250-5LO1-Q
- Item number: 00513484
- Series: 1 (VQZ1000)
- Composite Symbol: 2 (2 Position Double)
- Seal Type: 0 (Metal Seal)
- Function: Standard (0.35W DC, AC)
- Coil Voltage: 5 (24VDC)
- Lead Wire: LO (L Plug w/o Connector)
- Manual Override: Non-locking Push Style
- IP65 Compliant: No
- Port Size: w/o Sub-plate
- Q: Q (CE Marked)
- Lead time: 29 days
- Country of origin: JP
