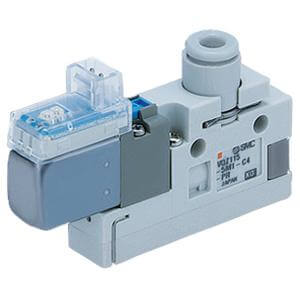

VQZ115, 100 Series, 3 Port Solenoid Valve, Body Ported | VQZ115K-5MO1-C4-PR-Q

3 PORT SOLENOID VALVE BODY PORTED

Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.

Features

• Fluid: air, inert gas
• Operating pressure range: 0.1 - 0.7MP
• (high pressure style 1.0MPa)
• 0.2mm² (poppet)
• Coil rated voltage: 12, 24VDC;
• 100, 110, 200, 200VAC
• Response time ms 2 : standard 1W 10 or less;
• high pressure 1W, low wattage and AC 13 or less

Specifications

• Part number: VQZ115K-5MO1-C4-PR-Q
• Item number: 01355122
• Function: K (High Pressure 1.0W)
• Coil Voltage: 5 (24VDC)
• Electrical Entry: MO (M Plug w/o Connector)
• Manual Override: Non-locking Push Style
• Port Size: C4 (ø4 One-touch Fitting)
• Model: PR (Single Unit Type)
• Option: None
• CE Compliant: Q (CE Marked)
• Lead time: 18 days
• Country of origin: JP
