SMC · Pilot Operated 3 Port Solenoid Valves

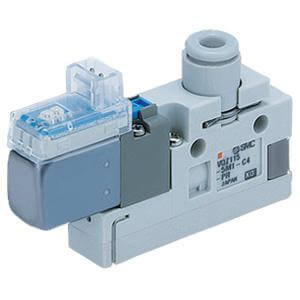

VQZ115K-5GB1-M5-PR-Q
excl. VAT · €93,86 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQZ115K-5GB1-M5-PR-Q |
|---|
3 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MP
- (high pressure style 1.0MPa)
- 0.2mm² (poppet)
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 200VAC
- Response time ms 2 : standard 1W 10 or less;
- high pressure 1W, low wattage and AC 13 or less
Specifications
- Part number: VQZ115K-5GB1-M5-PR-Q
- Item number: 01602651
- Function: K (High Pressure 1.0W)
- Coil Voltage: 5 (24VDC)
- Electrical Entry: G (Grommet)
- Manual Override: B (Locking Slotted Style)
- Port Size: M5 Thread
- Model: PR (Single Unit Type)
- Option: None
- CE Compliant: Q (CE Marked)
- Lead time: 18 days
- Country of origin: JP
