SMC · Pilot Operated 4/5 Port Solenoid Valves
VQC1100KN-5B1
excl. VAT · €87,76 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQC1100KN-5B1 |
|---|---|
| 5/2 solenoid valve | |
| single solenoid | |
| 24 V DC | |
| common - | |
| base mounted | |
| internally wired | |
| metal seals | |
| LED | |
| noise reduction | |
| manual override | screwdriver type |
| high pressure 1.0 MPa | |
| Country of origin | JP |
| TARIC code | 8481209090 |

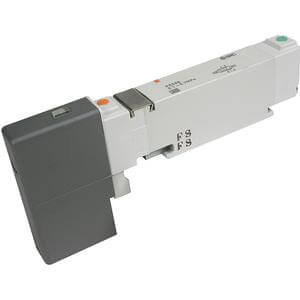

VQC1000, 5 Port Solenoid Valve, All Types
Key features
- Fluid: air/inert gas
- Operating pressure range: 0.1 - 0.7MPa (high pressure type 1.0MPa)
- mm²: metal seal 3,2; rubber seal 4,5
- Coil rated voltage: 24VDC
- Response time (ms) standard 0.4W: metal seal 20 or less; rubber seal 25 or less
- Ambient & fluid temperature: -10 to 50°C
