SMC · Pilot Operated 4/5 Port Solenoid Valves
VQ4150-5HW1-Q
excl. VAT · €174,04 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | VQ4150-5HW1-Q |
|---|---|
| 5/2 single solenoid valve | |
| 24V DC | |
| IP65 | |
| COM- | |
| metal seal | |
| plug lead type | |
| Country of origin | JP |
| TARIC code | 8481209090 |

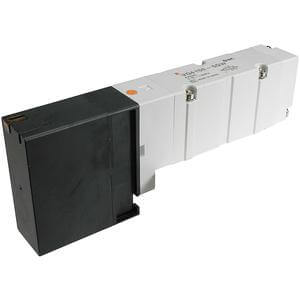

VQ4*5*, 4000 Series, 5 Port Solenoid Valve, Plug Lead, Base Mounted
Key features
- Fluid: air/inert gas
- Operating pressure range: 0.15 - 1.0 MPa
- Flow [l/min (ANR)], (Cv): 2 position metal seal 1477, (1.5); 2 position rubber seal 2002, (2.1) 3 position metal seal 1438 - 1469, (1.5 - 1.6); 3 position rubber seal 1827 - 1877 (1.9)
- Coil rated voltage: 12, 24VDC
- Response time (ms) standard 0.95 W: metal seal 12 or less to 55 or less; rubber seal 15 or less to 62 or less
- Ambient & fluid temperature: -10 to 50°C
- Optional IP65 enclosure
