SMC · Process Valves
VQ31A1-5G-C10-Q
excl. VAT · €55,98 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQ31A1-5G-C10-Q |
|---|---|
| Series | 3 (VQ31) |
| Body Style | A (Single Unit) |
| Coil Voltage | 5 (24VDC) |
| Lead Wire | G (Grommet) |
| Voltage Protection | None (Or w/Surge Suppressor in Case of AC Volts) |
| Manual Override | None |
| Port Size | C10 (ø10 One-touch Fitting) |
| Option | None |
| Q | Q (CE Marked) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481807990 |

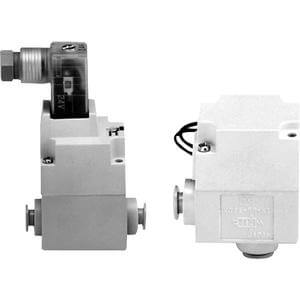

- The VQ20/30 series is a pilot operated, two port multi-media valve. The series is compact and lightweight with a large flow capacity. The VQ20/30's long life, high speed coil (up to 20 million cycles at 100cps for pneumatic use) along with its all plastic construction, make it an excellent choice for those who want high performance at a lower cost.
Key features
- Fluid: Air/inert gas
- Operating pressure range: 0.01-0.6MPa
- Effective area (Cv/effective orifice): 7.2mm<sup> 2</sup> -17.5mm<sup> 2</sup> (0.4/ø3-1/ø4.8)
- Coil rated voltage: 12, 24VDC; 100, 110, 200VAC
- Response time: 5ms or less (VQ20); 20ms or less (VQ30)
- Ambient/fluid temp: -10 to 50°C
