SMC · Pilot Operated 3 Port Solenoid Valves
VP717Y-5YO1
excl. VAT · €139,12 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | VP717Y-5YO1 |
|---|
Discontinued by SMC. Replacement: VP746E-5YO1

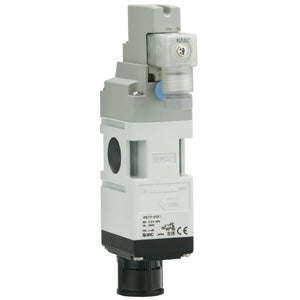

3 PORT SOLENOID VALVE
High flow capacity:Cv1.0 (VP300), Cv2.3 (VP500), Cv4.0 (VP700). Low power consumption: 1.8W(DC).Possible to use as either selector valve or divider valve.Changeable from normallyclosed style to normally open style. Vacuum applicable: Up to –101.2kPa.
Features
- For connecting to F.R.L. units.
- Allows for space saving and reduced piping labor.
- Power consumption: 0.35 W (Without light).
- Enclosure: IP65.
Specifications
- Part number: VP717Y-5YO1
- Item number: 01484981
- Series: 7 (VP700)
- Pressure Specification: Standard (0.7 MPa)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: YO [DIN Terminal (EN175301-803C) w/o Connector]
- Light/Surge Voltage Suppressor: w/o Light/Surge Voltage Suppressor
- Manual Override: Non-locking Push Type
- Bracket: Without bracket
- Flow Direction: Left to Right
- Lead time: 5 days
- Country of origin: JP
