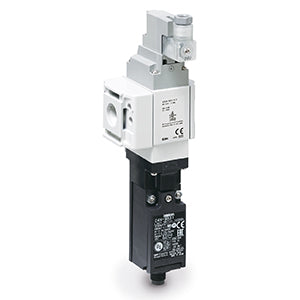

SMC · Pilot Operated 3 Port Solenoid Valves
VP546-5YZ1-M-SS
excl. VAT · €339,28 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VP546-5YZ1-M-SS |
|---|
3 PORT SOLENOID VALVE
Applicable series: AC-D
Features
- Modular connection type for connecting to FRL units
- With main valve position detection function
- Optional soft start-up function
- Selectable single or dual residual pressure exhaust valve
- A check valve is incorporated in the pilot flow path
- Enclosure: IP65.
Specifications
- Part number: VP546-5YZ1-M-SS
- Item number: 02307456
- Series: 5 (VP500)
- Pilot: Internal Pilot
- Pressure Specification: Standard (0.7 MPa)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: YZ (DIN EN 175301-803C Terminal w/Light & Surge Voltage Suppressor)
- Safety Limit Switch/Wiring: M [M12 Connector (Made by OMRON)]
- Flow Direction: Left to Right
- No. of Residual Pressure Exhaust Valves: S (Single)
- Soft start-up Function: S (With Soft Start-up Function)
- Thread: Rc (or None)
- Lead time: 3 days
- Country of origin: JP
