SMC · Pilot Operated 3 Port Solenoid Valves
VP517Y-5DO1
excl. VAT · €115,30 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | VP517Y-5DO1 |
|---|

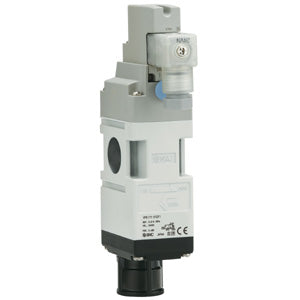

3 PORT SOLENOID VALVE
Modular connection type for connecting to FRL units Saves space and reduces piping work Low power consumption: 0.35 W (Without light) Enclosure: IP65.
Features
- Modular connection type for connecting to FRL units
- Saves space and reduces piping work
- Low power consumption: 0.35 W (Without light)
- Enclosure: IP65.
Specifications
- Part number: VP517Y-5DO1
- Item number: 01673998
- Series: 5 (VP500)
- Bracket: Without bracket
- Electrical Entry: DO (DIN Terminal w/o Connector)
- Light/Surge Voltage Suppressor: w/o Light/Surge Voltage Suppressor
- Pressure Specification: Standard (0.7 MPa)
- Flow Direction: Left to Right
- Manual Override: Non-locking Push Type
- Rated Voltage: 5 (24 VDC)
- Lead time: 20 days
- Country of origin: JP
Documents
More part numbers in this series
VP517Y-5D1€99,32VP517Y-5DO1This itemVP517Y-5Y1€99,32VP717Y-5D1€118,62VP717Y-5DO1€115,93VP717Y-5DZ1€125,28VP717Y-5Y1€118,62VP717Y-5YZ1€125,28VP546-5DZ1-M-D€356,10VP546-5DZ1-M-DS€444,70VP546-5DZ1-M-S€194,13VP546-5DZ1-M-SS€282,73VP546-5YZ1-M-D€356,10VP546-5YZ1-M-DS€444,70VP546-5YZ1-M-S€194,13
VP 3-Port Solenoid Valve Residual Pressure Release Modular Connection →
