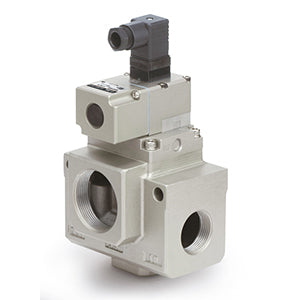

SMC · Pilot Operated 3 Port Solenoid Valves
VP3185-125DA1-F-Q
excl. VAT · €522,37 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VP3185-125DA1-F-Q |
|---|
High flow capacity:Cv1.0 (VP300), Cv2.3 (VP500), Cv4.0 (VP700). Low power consumption: 1.8W(DC).Possible to use as either selector valve or divider valve.Changeable from normallyclosed style to normally open style. Vacuum applicable: Up to –101.2kPa.
Features
- Port size: 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
- Body ported
- Normally Closed or Normally Open (Changeable).
Specifications
- Part number: VP3185-125DA1-F-Q
- Body Size: 8 (1 1/2)
- Valve Option: For General
- Port Size: 12 (Rc 1 1/4, 32A)
- Rated voltage: 5 (24 VDC)
- Electrical Entry: D (DIN Terminal)
- Type of actuation: A [Normally closed (N.C.)]
- Pilot: 1 (External Pilot)
- Thread Type: F (G)
