SMC · Process Valves

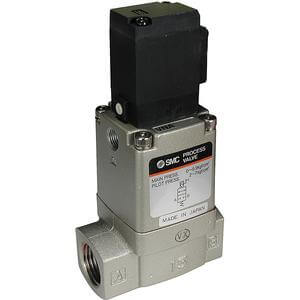

VNA411A-F25A-5DZ-Q
excl. VAT · €191,98 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VNA411A-F25A-5DZ-Q |
|---|---|
| Size | 4 (ø25) |
| Valve Type | 1 [NC (Operating Pressure 0 to 1 MPa)] |
| Sealant | A (NBR Seal) |
| Thread | F (G) |
| Port Size | 25A (1) |
| Voltage | 5 (24VDC) |
| Lead Wire | DZ (DIN Terminal w/Light & Surge Voltage Suppressor) |
| Manual Override | Non-locking Push Style |
| Bracket | None |
| CE Marked | Q (CE Marked) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Model VNA process valve is for compressed air and air-hydro circuit control.
Key features
- Fluid:air; CO 2 ; nitrogen gas; freon 11, 113, 114;
- turbine oil, hydraulic fluid, argon, helium
- Proof pressure: 1.5MPa
- Operating pressure range: 0 to 1MPa
- Effective area: 13 to 770mm<sup> 2</sup>
- Coil rated voltage: AC(50/60Hz) 100V, 200V, others (option);
- DC 24V, others (option)
- Ambient temperature: -5 to 50°C (no freezing)
