SMC · Process Valves
VNA201A-F15A
excl. VAT · €104,35 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VNA201A-F15A |
|---|---|
| Size | 2 (ø15) |
| Valve Type | 1 [NC (Operating Pressure 0 to 1 MPa)] |
| Sealant | A (NBR Seal) |
| Thread | F (G) |
| Port Size | 15A (1/2) |
| Bracket | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

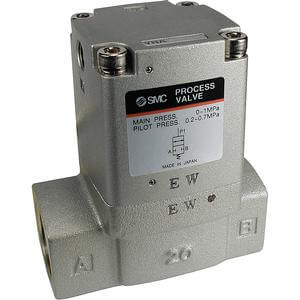

- Model VNA process valve is for compressed air and air-hydro circuit control.
Key features
- Fluid:air; CO 2 ; nitrogen gas; freon 11, 113, 114;
- turbine oil, hydraulic fluid, argon, helium
- Proof pressure: 1.5MPa
- Operating pressure range: 0 to 1MPa
- Effective area: 13 to 770mm<sup> 2</sup>
- Coil rated voltage: AC(50/60Hz) 100V, 200V, others (option);
- DC 24V, others (option)
- Ambient temperature: -5 to 60°C (no freezing)
