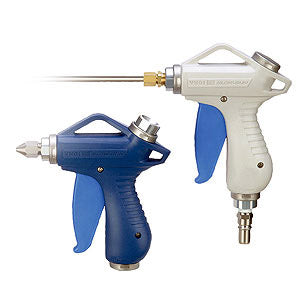

VMG, Blow Gun, Standard Type | VMG11W-F03

ENERGY SAVING BLOW GUN

Taking energy-saving into consideration, blow gun series VMG has a large effective area of 30mm² (without nozzle) with a ratio of 10.7:1 over the traditional air guns. Pressure loss is 1% or less when nozzle bore size 2.5mm is used. Due to adoption of balance type, lever operation force is not adversely affected by supply pressure. Piping direction is optional from top or bottom and nozzle is also optional.

Features

• 20% reduction in power consumption.
• Pressure loss 1% or less.

Specifications

• Part number: VMG11W-F03
• Item number: 00243657
• Piping: 1 (Bottom Direction)
• Body Color: W (Urban White)
• Piping Type: F (G(PF))
• Connection Size: 03 (Screw-in (Port Size 3/8))
• Nozzle: w/o Nozzle
• Nozzle Cover: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
