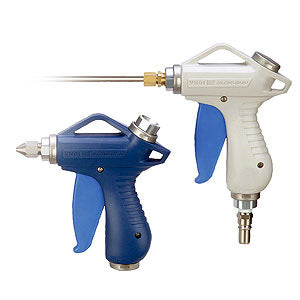

SMC · Blow Guns & Nozzles
VMG11W-F02-03
excl. VAT · €50,10 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VMG11W-F02-03 |
|---|
Taking energy-saving into consideration, blow gun series VMG has a large effective area of 30mm² (without nozzle) with a ratio of 10.7:1 over the traditional air guns. Pressure loss is 1% or less when nozzle bore size 2.5mm is used. Due to adoption of balance type, lever operation force is not adversely affected by supply pressure. Piping direction is optional from top or bottom and nozzle is also optional.
Features
- 20% reduction in power consumption.
- Pressure loss 1% or less.
Specifications
- Part number: VMG11W-F02-03
- Piping: 1 (Bottom Direction)
- Body Color: W (Urban White)
- Piping Type: F (G(PF))
- Connection Size: 02 (Screw-in (Port Size 1/4))
- Nozzle: 03 (Male Thread, KN-R02-200)
- Nozzle Cover: None
- Country of origin: JP
