SMC · Blow Guns & Nozzles
VMG11BU-F02
excl. VAT · €44,99 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Next-business-day delivery in Bulgaria for in-stock parts
In stock
Need volume pricing or a special version? Request a quote →
| Part number | VMG11BU-F02 |
|---|

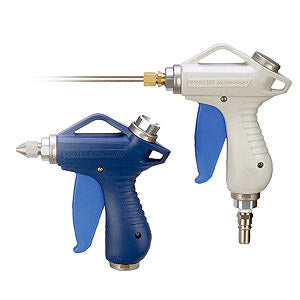

ENERGY SAVING BLOW GUN
Taking energy-saving into consideration, blow gun series VMG has a large effective area of 30mm² (without nozzle) with a ratio of 10.7:1 over the traditional air guns. Pressure loss is 1% or less when nozzle bore size 2.5mm is used. Due to adoption of balance type, lever operation force is not adversely affected by supply pressure. Piping direction is optional from top or bottom and nozzle is also optional.
Features
- 20% reduction in power consumption.
- Pressure loss 1% or less.
Specifications
- Part number: VMG11BU-F02
- Item number: 00097067
- Piping: 1 (Bottom Direction)
- Body Color: BU (Dark Blue)
- Piping Type: F (G(PF))
- Connection Size: 02 (Screw-in (Port Size 1/4))
- Nozzle: w/o Nozzle
- Nozzle Cover: None
- Lead time: 5 days
- Country of origin: JP
