SMC · Air Operated Valves
VGA342-06FA
excl. VAT · €267,79 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VGA342-06FA |
|---|

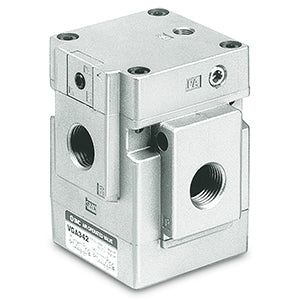

3 PORT AIR OPERATED VALVE
Series VGA342 is a 3 port air operated valve and can be used as a selector or divider valve (external pilot). Actuation is changeable between N.C., N.O., or external pilot types. VGA342 is possible to use in vacuum or under low pressures. No lubrication is required.
Features
- Port size: 1/2, 3/4, 1
- Applicable thread type: Rc, G, NPT, NPTF
- Type of actuation: Normally open/Normally closed (Changeable)
- Operating pressure range: 0.2 to 0.9 MPa
- Impact/Vibration resistance: 150/50 m/s²
Specifications
- Part number: VGA342-06FA
- Item number: 00274203
- Port Size: 06 (3/4)
- Thread Type: F (G)
- Passage: A (Normally Closed)
- Lead time: 5 days
- Country of origin: JP
