SMC · Pilot Operated 3 Port Solenoid Valves

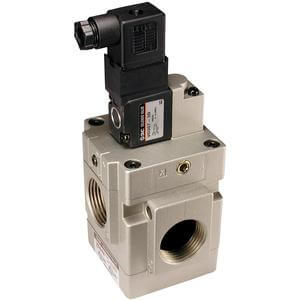

VG342R-5D-06F-Q
excl. VAT · €367,73 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
| Part number | VG342R-5D-06F-Q |
|---|
3 PORT SOLENOID VALVE
Series VG342 is a 3 port pilot poppet solenoid valve and can be used as a selector or divider valve (external pilot). Actuation is changeable between N.C., N.O., or external pilot types. VG342 is possible to use in vacuum or under low pressures. No lubrication is required.
Features
- Light Weight: 1.1kg.
- Large Flow Capacity: 1/Nl/min 12857.65
- Low Power Consumption.
- No lubrication required.
- Possible to use in vacuum or under low pressures.
- Changeable actuation: N.C., N.O. or External pilot.
- Can be used as a selector or divider valve (External pilot).
Specifications
- Part number: VG342R-5D-06F-Q
- Item number: 00494209
- Pilot: R (External Pilot)
- Surge Suppressor: None
- Voltage: 5 (24VDC)
- Port Size: 06 (3/4)
- CE Marked: Q (CE Marked)
- Option: Standard
- Passage: External Pilot (N.O/N.C)
- Lead Wire: D (DIN Connector)
- Thread: F (G)
- Lead time: 34 days
- Country of origin: JP
