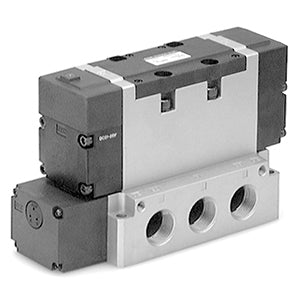

VFR6000, Plug-in & Non Plug-in Types, Metric | VFR6210-5DZ-Q

5 PORT SOLENOID VALVE

Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.

Features

• VFR6000, plug-in & non plug-in types Maximum operating pressure: up to 0.9MPa Ambient & fluid temperature: Max. 50°C Manual override: non locking push style.

Specifications

• Part number: VFR6210-5DZ-Q
• Item number: 00422391
• Configuration: 2 (2 Position, Double)
• Model: 1 (Non Plug-in)
• Body Option: 0 (Standard)
• Rated Voltage: 5 (24 VDC)
• Lead wire: D (DIN Terminal)
• Surge Suppressor: Z (With light/surge voltage suppressor)
• Port Size: w/o Sub-plate
• Thread: Rc
• CE Compliant: Q (CE Compliant)
• Lead time: 26 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
